Product Description
-
It is a rotary handle for Compact NSX 400/630, PowerPact Multistandard L frames and EasyPact CVS 400/630 devices
It is suitable for isolation and it is used for standard applications
It maintains the access to trip unit settings and to the push to trip button. It is equipped with a standard black handle
There is an indication of the three device positions O (OFF), I (ON) and tripped
The degrees of protection are IP40 and IK07
This rotary handle is padlockable in the OFF position using 1 to 3 padlocks not supplied (shackle diameter 5 to 8mm)
-

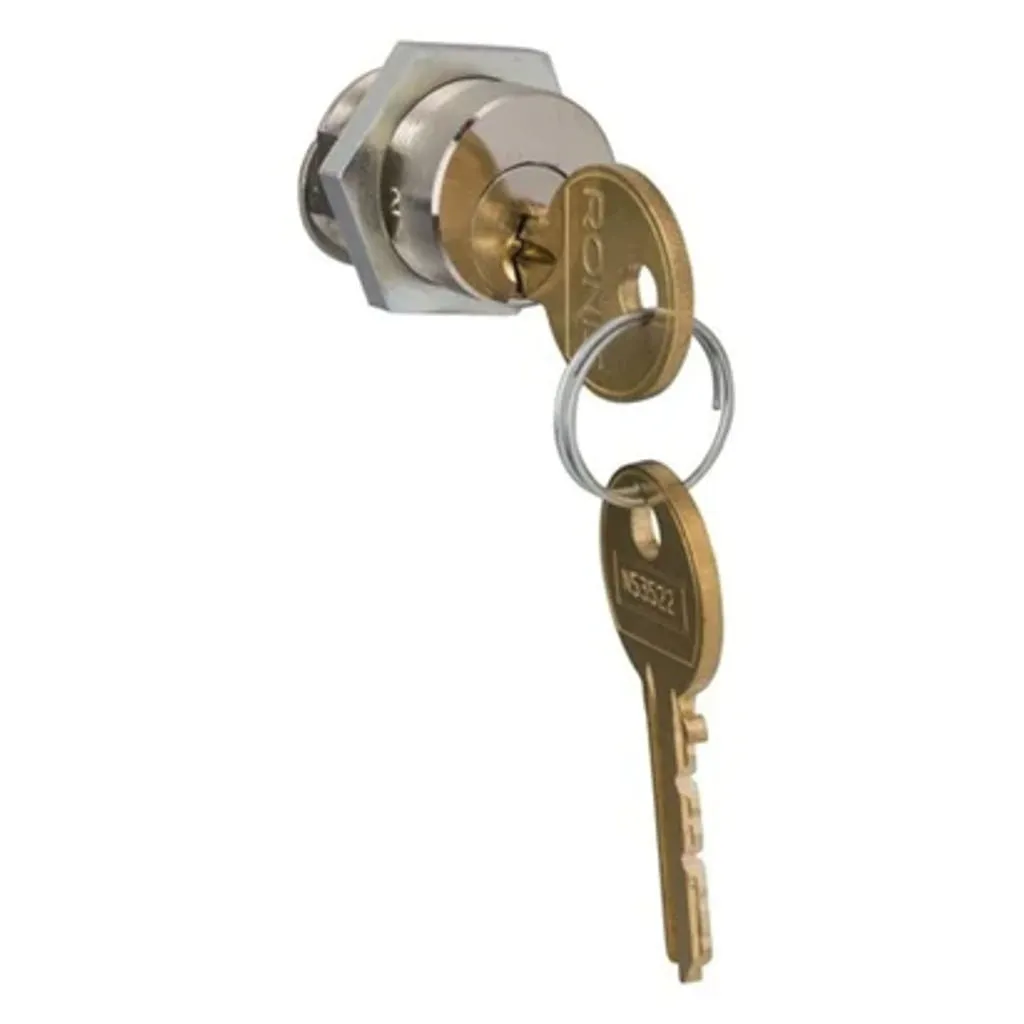

As an option, it is possible to install a Ronis or Profalux keylock on the base of the handle to obtain the same function as with a padlock
Product Specification
|
Brand |
Schneider |
|
Model |
Compact NSX |
|
Product Code |
41940 |
|
Product Type |
Ronis Keylock Of Rotary Handle |
|
Device Short Name |
Keylock |
|
Product Or Component Type |
Keylock |
|
Quantity Per Set |
Set Of 1 |
|
Description |
Installation Accessories Suitable For 100/160/250A, 400/630A |
|
Type Of Keylock |
Flat |
|
Key Number |
1351B.500 |
|
Number Of Key |
2 |
|
Accessory / Separate Part Category |
Spare Parts |
|
Operation |
1200 |
|
Operation Description |
Assembly And Test |
|
Duration Of Operation |
3.5 |
|
Warranty |
As Per Manufacturer Terms and Condition |
