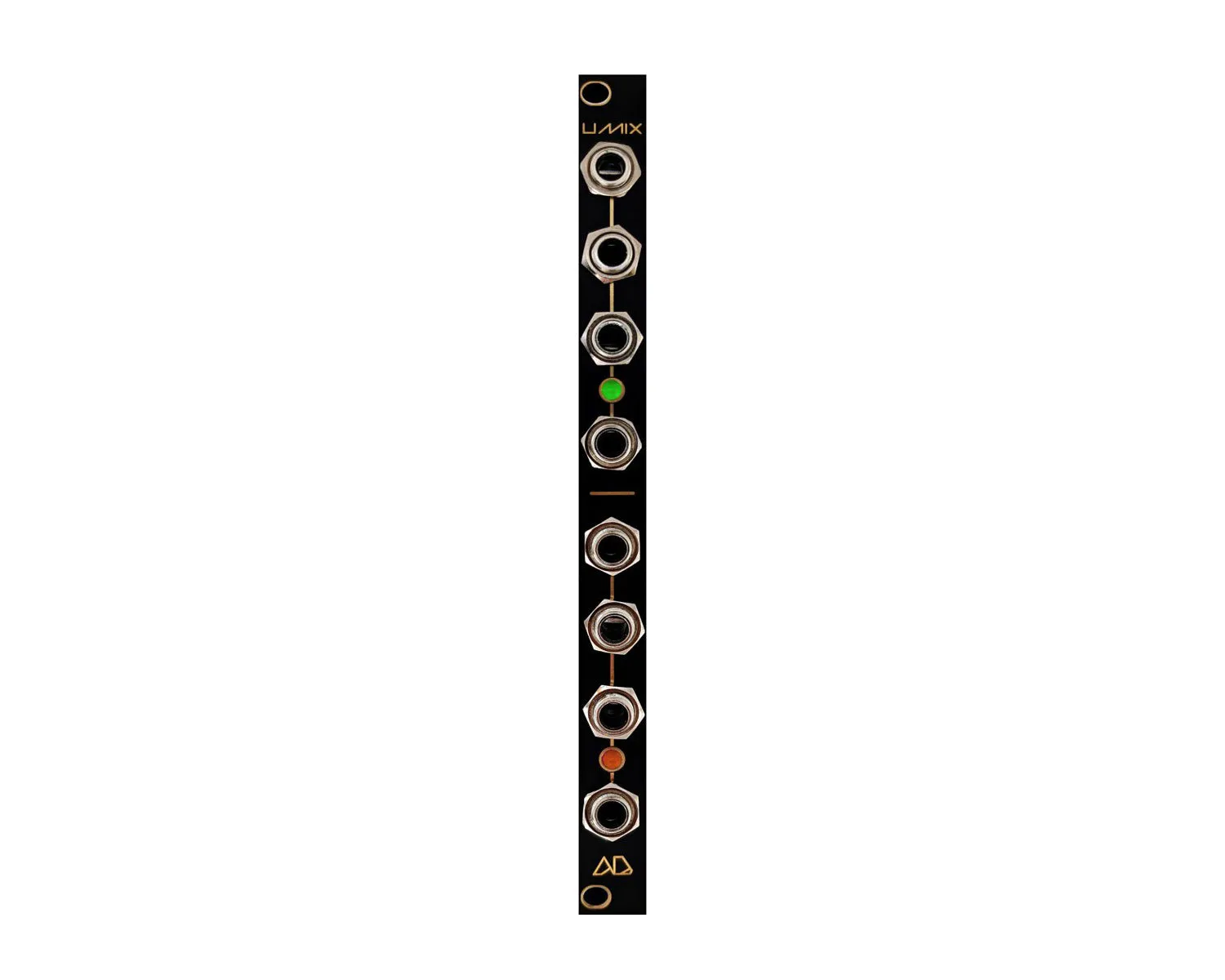

The Abyss Devices uMix is a dual three-to-one or single six-to-one unity mixer with a low, single PCB depth perfect for slim cases.
Each output has an isolated bipolar red/green LED for clear monitoring, and the back has connectors to daisy-chain multiple uMix, aMix, or VI Mix units together. uMix is also DC-coupled, allowing use with audio, control voltages, gates, and triggers, so if you need to combine signals without taking up too much space, uMix is a great solution.

Features:

• 6-1 or 3-1 Mixer
• Top 3 inputs normalized to the bottom section Can handle audio and CV, including gates and triggers Input/output connectors on the back for chaining multiple units together Compatible with aMix and VI Mix modules Isolated bipolar red/green LED for each output Only 1 PCB deep

Product Specs

• Item Number: 24764
• Make:
• Model:
• Condition:
• Finish: Black
• Categories: ⇒
• Function:
• Made In: Canada
• MPN: AB-UMIX
• Modular Grid: Eurorack
• Dimensions: 2 HP 20 mm deep
• Power: 20 mA 12V 20 mA -12V 0 mA 5V
